TMPSU019
|
| Description: |

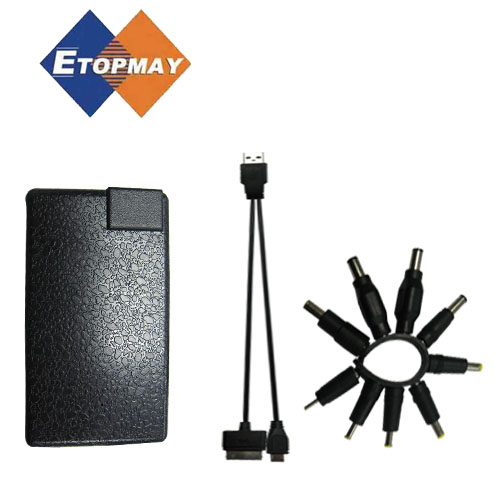

65W Ultra-thin Multifunctional Laptop Power Adapter, Charger for Cell Phone and Tablet PC
Specifications:
Type: KLAP-065190A35
Input: 115-230Vac 50-60Hz 1.3A
Output 1: 18.0V～20.0V MAX:65W
Output 2: 5.0V 2.1A
Product Size: 100*67*14mm
Product Weight: 143g
Main Functions:
1. Suitable for all laptops, the power of which is below 65W or other electronic equipments, the working voltage of which is between 18V to 20V.
(The working Voltage, 18V, 18.5V, 19V, 19.5V or below 20V is available. Long-term load power should be maintained within 65W. )
2. The USB output interface is suitable for the charging of smart phones, tablets, game consoles and other digital products.
(USB output current automatically adjusts according to the requirements of the equipments, and the maximum is 2.1A)
Features:
This adapter can recharge a laptop, tablet PC or cell phone. It conforms to the standard of European RoHS.
No longer need to carry any other chargers, most of the mobile devices can be charged with this stuff.
Super slim and ultra light, similar size with cell phones, very convenient for your traveling. Anti-scratch striate processed surface can keep the appearance looks intact after long time usage.
Instructions:
1. Charging for laptops or other equipments
1.1 Make sure the working voltage is between 18V to 20V and the power is below 65W. Connect AC line and plug in the power socket.
1.2 Choose the adaptable DC connector: The power itself has a 5.5*2.1 DC connector and other 9 pieces connectors which are used often. |
 |
 |
|
|
|
|
|
