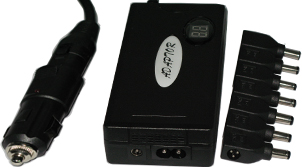

90W AC/DC Universal Notebook Adapter (home & Car use)
With High efficiency and true voltage output automatically (without operation by hand )
Auto-reset to the lowest voltage (+15V)after current interruption to protect your
Including 8 connectors for user to change voltage easily
Different voltage suitable for the most laptops/notebook computers
Opp/OCP/OVD/SCP protection
Active PFC design
AC input:110V---240v
DC input:12V
Output:
|
Type |
Output |
Connector Size |
Fit for laptops |
|
15V/M1 |
15V/Max90W |
6.3*6.0mm |
Toshiba |
|
16V/M2 |
16V/Max90W |
5.5*2.5mm |
IBM |
|
16V/M3 |
16V/Max90W |
6.5*4.4mm(with 1.4mm pin) |
sony Fujitsu |
|
18.5V/M4 |
18.5V/Max90W |
4.8*1.7mm |
Compaq |
|
19V/M5 |
19V/Max90W |
5.5*2.5mm |
Acer Compaq belta hp fujitsu Cateway Toshiba liteon |
|
19V/M6 |
19V/Max90W |
5.0*3.0mm |
Samsung |
|
19V/M7 |
19V/Max90W |
5.5*2.1mm |
Acer Compaq belta hp fujitsu Cateway Toshiba liteon |
|
19.5V/MW |
19.5V/Max90W |
6.5*4.4mm(with 1.4mm pin) |
Sony | |
