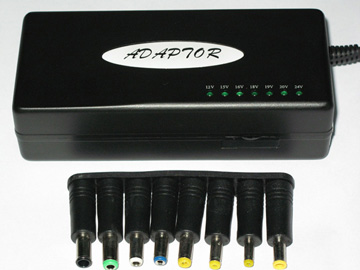

90W Universal AC Adapter
It is used for almost brands of laptops, with USB port, charge mobile equipment.
operation at input AC 110V to 265V-47-63Hz, Output: USB port: 5v-2A max, DC 7 voltages: 15V/16V/18V/19V/20V-4.5A, 22V-4.1A, /24V-3.75A, output power 90Watt max,
Protection functions: Overload protection, over voltage protection, short Circuit Protection, power supply by mains supply. With 8 tips connecter to suit to almost laptops, Select output voltage to suit to laptop and make sure the polarity of tips connect correc before use.
Technical Data:
Rated Input Voltage(50-60Hz) AC120V OR AC230V
Vibration Input Voltage Range(47-63Hz) AC100V-265V
Input Rated Current 1.5amp
Input Power 120VA
Output power(max) 90WATT
Efficiency >80%(TYP)
Output voltage:
15V/16V/18V/19V/20V/22V/24V(0/+0.9V NO LOAD)
USB PORT: 5V-(0~+1V NO LOAD) DC15V-24V- |
