Features
Complies with the IEEE 802.11b/g standards
High data rate up to 54Mbps network speed
Supports WDS (Wireless Distributed System) repeater mode
Supports AP client mode
Supports WPS (Wi-Fi Protected Setup) function
Supports hidden SSID function
Supports WMM function to meet the multimedia data bandwidth requirement
Supports 64/128-bit WEP, WPA, WPA2 wireless security
Obtain WAN IP by PPPoE/DHCP/static IP/PPTP
Integrated 10/100 Mbps LAN switch with Auto MDI/MDI-X support
Provides DHCP server
VPN pass through (L2TP/IPSec/PPTP)
Supports virtual server, port forwarding and DMZ(demilitarized zone)
Supports DDNS (dynamic DNS)
Integrated anti-DOS firewall
Provides MAC access control
Supports UPNP (Universal Plug and Play)
Supports system status (port connectivity) and remote log for network management
Supports web-based configuration
Firmware upgradeable via web browser
Technical specifications
|
Item |
Description |
|
Product |

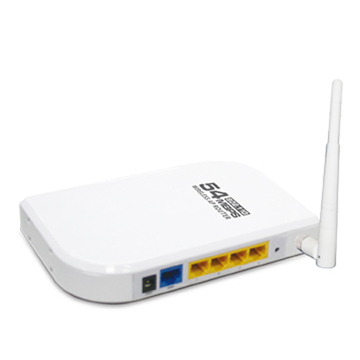

Wireless 802.11b/g Access Point Router |
|
SoC + RF |
Realtek RTL8186 |
|
Flash |
2 MB |
|
RAM |
8 MB |
|
Antenna |
Non-detachable 3dBi Antenna x 1 |
|
Wireless Features |
Support IEEE 802.11g, 802.11b Wireless Access Point |
|
Superior wireless coverage and high performance, up to 54Mbps for wireless data rates |
|
Support WDS, AP, AP Client mode |
|
Maximum coverage distance |
100 m indoors;300 m outdoors |
|
Modulation Types Supported |
OFDM: BPSK, QPSK, 16QAM, 64QAM (11g) |
|
DSSS: DBPSK, DQPSK, CCK(11b) |
|
Data Rates Supported |
IEEE 802.11b: 1, 2, 5.5 and 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
Quality of Service (QoS) |
Wi-Fi alliance WMM (Wi-Fi Multimedia Enhancement) support |
|
Management Features |
Firmware upgrade via HTTP |
|
WAN and LAN side connection statistics |
|
Configuration of static routes and routing table |
|
Configuration of NAT / NAPT |
|
Selection of bridge or router mode |
|
PPP user ID and password |
|
Physical Interfaces |
4 x RJ-45 10/100Mbps LAN Ports
1 x RJ-45 WAN Port
1 x power jack
1 x detachable antenna |
|
Router Features |
DHCP server and client |
|
NAPT (Network Address and Port Translation) |
|
NAT (Network Address Translation) |
|
ICMP (Internet Control Message Protocol) |
|
IGMP (Internet Group Management Protocol) |
|
DDNS (Dynamic Domain Name Service) |
|
Security Features |
Password protected configuration access |
|
User authentication (PAP / CHAP) with PPP |
|
Support 64/128-Bit WEP encryption, WPA-PSK, WPA2-PSK, WPS and 802.1x |
|
Ethernet Features |
Compliant with IEEE 802.3 and 802.3u 10/100 Mbps |
|
All Ethernet ports support auto-crossover (MDI/MDI-X) |
|
Power |
9VDC, 1A Single Range Switching Power Adapter |
|
temperature |
0℃ to 40℃(operating)
–20℃ to +70℃(storage) |
|
humidity |
10% to 90% non-condensing (operating)
5% to 95% non-condensing (storage) | |
