10/100Mbps Fast Ethernet Switch
USER’ S GUIDE
Introduction
Our high performance switch was designed for a network encironment where teaffic and the number of users increase continuously. The Switch is ideal for shared bandth 10 Mbps or 100Mbps workgroups with multiple high-speed servers. With the highest bandwidth at 200Mbps(100Mbps full-duplex mode),each port can provide workstation with congestion-free data-pipe for simultaneous access to the server.
The Switch is expandable by cascading two or more switches together.As all ports support 200Mbps,the Switch can be cascaded from any port and to any number of switches.
The Switch is a perfect choice for 10Mbps network network site that could be upgraded to Fast Ethrnet in the futuer.Ethernet workgroups can connect to the Switch now,and change adapters and hubs anytime later without changing the Switch or reconfiuring the network.
Our Switch has several models:5Port Switch,each has different port number,Other key features of ecery model are as followed:
Features
1) Common features
Support IEEE802.3X for full duplex mode operation
10Base-T,100Base-T,and 100BaseFX oprtation
Support Flow Control for full duplux mode operation and backpressure for half duplex mode operation
LED status of Power on,Link,and Speed
Full lone speed capability of 148800(14880) packets/sec for 100M(10M)
Automatic MDI/MEI-X configuration
Communication distance:Not less than 100m

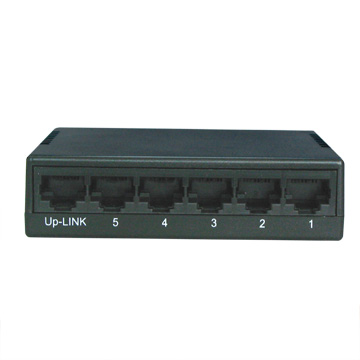

Interface:5 Rj-45 port
2) MAC address,Buffer size and Band width
|
Product Models |
port |
MAC address |
Buffer size |
Bandwidth |
|
5Pirt Switch |
5 |
1K |
2M |
1G/1.6Gbps |
Contents

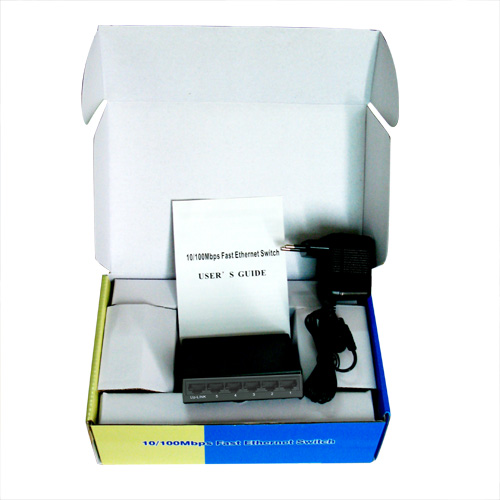

1) 5Port Swich Fixed:Etehernet Swotch Power supply,User’S Guide
LED Indicator
LED indicator include:Power,Link/Act,100Mbps.
|
Indicator |
color |
status |
description |
|
power |
Green |
On |
Switch Power On |
|
Off |
Swotch shut down |
|
Link/Act |
Green |
On |
Any network device connected to corresponding port |
|
Flicker |
Data transmitting between Switch and network device |
|
100Mbps |
Green |
On |
The device connected to is 100Mbps |
|
Off |
The device connected to is 10Mbps |
Physical and Enviromental
|
Standards |
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE802.3Nway auto-negotiation
IEEE 802.3x flow control |
|
Protocol |
CSMA/CD |
|
Data
Transfer
Rate |
Ethernet:10Mbps(half duplex),20Mbps(full duplex)
Fast Ethernet:100Mbps(half duplex),200Mbps(full duplex) |
|
Network
Cables |
10BASE-T:2-pair UTP Car.3,4,5;EIA/TIA-568100 Ohm STP
100BASE-TX:2-pair UTP Cat,5;EIA/TIA-568 100 Ohm STP
100BAS-TX:62.5/125micron multimode foberoptic |
|
Power Supply |
5 port Swotch:External DC IN |
|
Tempcrature
& Humidity |
Oprating:0℃~50℃,Storage:-10℃~70℃
Operating:10%~90%,Storage:5%~90% |
Note:Ifthe information of products is changed.We will not inform.
