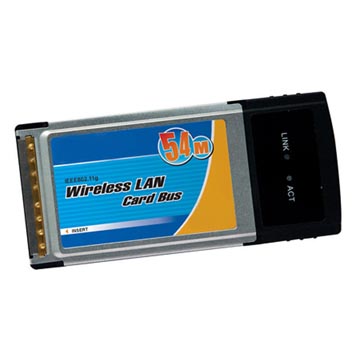

RMNTLAN010 is a wireless notebook adapter fully compliant with IEEE802.11g, communicates with any device that compliant with IEEE802.11g, IEEE802.11b, with wireless AP or Ethernet.
Features:
* IEEE 802.11g, IEEE 802.11b supported, compliant with Wi-Fi
* TCP/IP, NDIS3, NDIS4, NetBEUI supported
* Two working modes available: Ad Hoc Mode and Infrastructure Mode
* Transmission rate up to 54Mbps covers 300m
* Network status auto detects and rate auto negotiable
* Multilayer security: including WEP, SSID access settings
* Supports the communication of desktop PC and notebook with WLAN
* PnP supported
* Wireless roaming supported
Specifications:
Standard and protocols |
IEEE 802.11g, IEEE 802.11b, CSMA/CA |
Bus Type |
32bitCardBus Type II |
Frequency Range |
2.4~2.4835GHz |
Transmission Rate |
54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps |
Channels |
13 |
Sequence Spread |
DSSS(Direct Sequence Spread Spectrum) |
Data modulation |
BPSK, QPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) |
Transmission type |
CCK, OFDM |
Transmission Distance |
Up to 100m (indoor), up to 300(outdoor) |
Antenna Gain |
2dBi |
LED Indicator |
LINK/ACT(wireless network) |
Working Environment |
Working temperature:0ºC~40ºC;
Store temperature:-20ºC~80ºC
Working humidity :10%~95% RH Non-condensing |
OS supported |
Windows9x/Me/2000/NT/XP/2003 |
