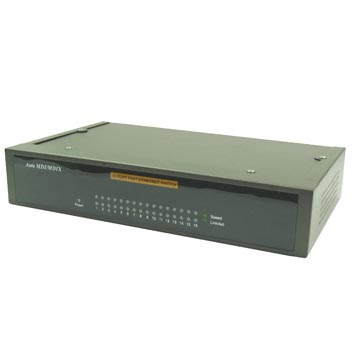

RMNTSW016S 16 Port Switch
|
| Description: |
| Enthernet Swtich: |
16 Port Steel 10/100m ethenet switch |
Product Description
Standards: IEEE 802. 3 10BASE-T Ethernet
IEEE802. 3u 100BASE-TX Fast Ethernet
ANSI/IEEE Std 802. 3 Nway auto-negotiation
IEEE802. 3 Frame types: Transparent
IEEE802. 3 MAC layer Frame size: 64-1518 Bytes
Topology: star
Protocol: CSMA/CD
Data Transfer Rate: Ethernet: 10Mbps(half duplex)
20Mbps(full duplex)
Fast Ethernet: 100Mbps(half duplex)
200Mbps(full duplex)
Number of Ports: RMNTSW018: 16 10/100Mbps ports;
RMNTSW019: 24 10/100Mbps ports;
Uplink shared with port 1x
Network Media: 10BASE-T: 2-pair Category 3, 4, 5 cable (100 m)
EIA/TIA-568 100-ohm STP (100m)
100BASE-TX: 2-pair Category 5 cable (100 m)
EIA/TIA-568 100-ohm STP (100m)
Environmental and Physical
Power Supply: 170 to 270 VAC, 50 or 60 Hz internal power supply.
Power Consumption: 35 watts maximum
Dimensions: 440mm(W)*49. 4mm(H)*208mm(D)
Operating Temperature: 0 to 50
Storage Temperature: : -25 to 55
Humidity: 5% to 95% non-condensing
DC Fan: optional
Emissions: FCC Class A, CE, VCCI Class A, C-Talk
Safety: UL, CSA, CE Mark, TUV/GS |
|
|
|
|
