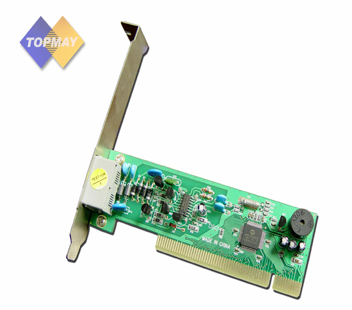

Product Name: Motorola Internal Fax Modem Model Number: RMNTIMD011
Place of Origin: China Brand Name: Topmay, ETOPMAY
Quality/Safety Certifications: ISO9000, UL, Inner Packing: In Bulk Packing, In Color Box
CE, FCC, 3C, ect. Packing
Unit Price: USD Negotiable Price Terms: FOB SHENZHEN, FOB
HONGKONG, CIF, EX., ECT.
Payment Terms: TT in advance Delivery Lead Time: 7 working days
after payment received
Supply Ability: 3,000pcs/day
Features:
1) Mortorola Chipset
2) Software fax modems
3) Uses hosts CPU with minimal performance degradation
4) Distributes functions optimally between CPU and DSP
5) CPU eliminates need for controller chip
6) Smaller DSP chip
7) Reduced board size
8) Superior price/performance ratio
9) Data modulation
a) Data rates up to 56 kbps
b) ITU-V.90 56K compliant
c) ITU-T V.34 (33,600 to 2,400 bps)
d) ITU-T V.32bis, V.23, V.22bis, V.21
e) Bell x 212A and 103
f) Error correction: ITU V.42 and MNP x 2.4
g) Data compression: ITU V.42bis and MNP 5
10) Fax modulation:
a) ITU-T V.17, V.29 to 14,400 bps
b) Fax Class 1 commands
c) Interface
d) PCI 2.2 compliant
e) Voice function
f) International telephony support
g) Voice compression: ADPCM, linear, and CL1
h) Full-duplex, echo-cancelled digital speakerphone
i) Telephone emulation for headset
11) Applications: voice IS-101 commands
12) Power requirements:
a) 3.3-V DSP
b) Automatic sleep and wake-up modes
c) ACPI (advanced configuration power interface)
d) AT command-driven
e) Supports Windows 98/NTME/2000/XP
| |
