Features:

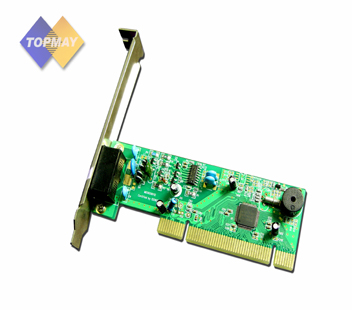

1) 56K internal fax modem
2) intel82537 chipset
3) Data modulation rate:
a) V. 34bis, V. 34+, ITU-T V. 34
b) V. 32bis, V. 32, V. 22bis, V. 22 and Bell 212A
c) ITU-T V. 23, V. 21 and Bell 103
4) Transmission: 56000, 33600, 31200, 28800, 24000, 14400, 12000, 9600, 7200,
4800, 1200, 1200/75 and 300bps
5) Voice mode: remote / local record and play back voice
6) Computer interface: PCI bus and plug-and-play
7) Data compression: ITU-T V. 42bis and MNP 5
8) Error correction: ITU-T V. 42 and MNP 2, 3, and 4
9) Advanced power management support
Specifications:
1) ITU-T group 3 compatible fax machines / modems
2) ITU-T V. 17, V. 29, V. 27 TER V. 21 channel 2300
3) 14400, 9600, 7200, 4800, 2400bps
4) Class 1 fax interface
5) Operation: full duplex
6) Commands: extended AT command set
7) Test modes: analog, digital and remote digital loop back with self-test
8) Compatibility: Pentium 200 (over) with MMX, CPU with PCI bus
9) Auto-dialing: touch-tone and pulse dialing, auto dial and auto answer
10) Fully compliant with V. 90, V. 34 bis, V. 32, V. 32 and V. 22 bis specifications
11) Compatible with Windows 95 / 98 / 2000 / XP / ME / NT4.0 operating systems and
most PCI bus compatible system
12) oftware upgradeable
13) Supports variable sample rates via the SLOTREQ protocol and valid tag bits
14) Supports modem wake-up on ring from D3 cold
|
