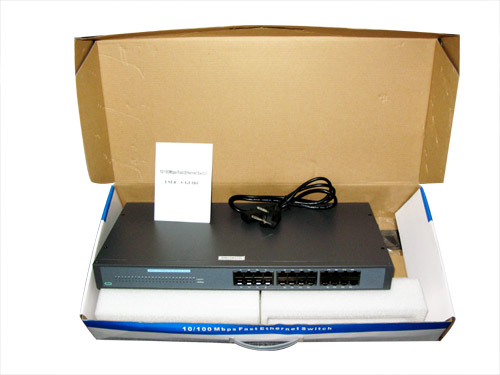

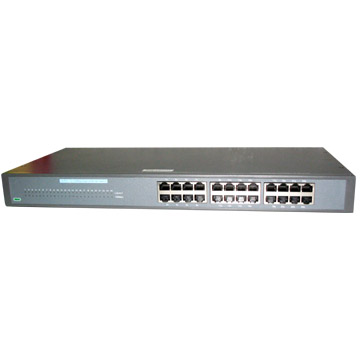

RMNTSW024S 24 Port Switch
Description:
Networking device: 24 Port Steel 10/100m Ethenet Switch Product Description The 24-port 10/100 Mpbs Fast Ethernet Switch is designed for SOHO(Small Office/ Home Offiec) users, Metal case design combined with a safety certified external power adapter make the switch the most robust produt, It is cost-effective, and space-saving for less than 8/16/24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner(Ethernet adapter, for example)with the best speed. Each port provides full bandwidth(Maximum with 200Mbps in full duplex mode)without traditional hub¡¯s collision phenomenon downgrading the performance. An uplink(cascade)port is provided to link to another Switch for more ports expansion. Easy read LED Indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and wall-mount.
Features Standards IEEE802.3 10BASE-T Ethernet, IEEE802.3 Frame type: Transparent Protocol CSMA/CD Data Transfer Rate Ethernet: 10Mbps(half duplex) 20Mbps(full duplex) Topology Star Network Media 10BASE-T: 2-Pair UTP Cat3. 4. 5(100m), EIA/TIA-568 100-ohm STP(100m)
Environmental and physical Power Supply: 12VDC. 50HZ(internal power supply) Power Consumption: 15watts maximum Operating Temperature: 0oCto50oC Storage Temperature: -30to50oC Humidity: 5%-95% non-condensing
