RMNTLAN003
|
| Description: |
|
HS Code: |
84716090 |
| Trademark: |
ETopmay |
| Model: |
RMNTLAN003 |
| Standard: |
CE, UL, ISO9000, 3C |
| Productivity: |
3000 pcs/day |
| 10/100m lan card: |

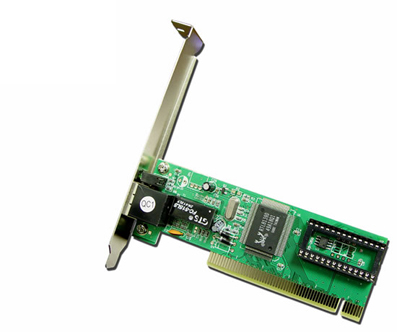

Reltek 8139d 10/100m lan card |
Product Description
Realtek 8139D
Realtek TRL8139D chip
10Mbps and 100Mbps operation
Supports 10mbps and 100mbps n-way auto negotiation operation
Compliant to PCI revision 2. 2
Supports PCI clock 16. 75MHZ to 40MHz
Supports ACPI, PCI power managerment
Compliant to PC99 standard
Supports wake-on-LAN function and remote
Wake-up (magic packet, linkchg and Microsoft wake-up frame)
Supports auxiliary power-on internal reset, to be ready for remote wake-up when main power still remains off
Contains two large (2KB) independent receive and transmit FIFOs
Supports digital and analog loopback capability on both pors
Supports full duplex flow control (IEEE 802. 3x)
Supports diagnostic LED pins with program able outputs
Softeware support:
on-board EEPROM (93C46) programming tool
setup/diagnostic program for DOS/Windows
NDIS2 (DOS, OS/2, Lantastic, WFW3. 1)
NDIS3, NDIS4, NDIS5 for win95, 98, me, 2000, NT3. 51, 4. 0, WFW3. 11
Netware 16-bit ODI driver for DOS, OS/2 and 32-bit ODI driver for Netware 3. x, 4. x, 5. 0 server
Packet driver for UNIX client
SCO Unix driver
Linux driver |
|
|
|
|
