HS Code: 84711000
Trademark: Etopmay
Model: RMNTLAN006
Standard: ISO9000, CE, UL, 3C
Productivity: 1000 pcs/day

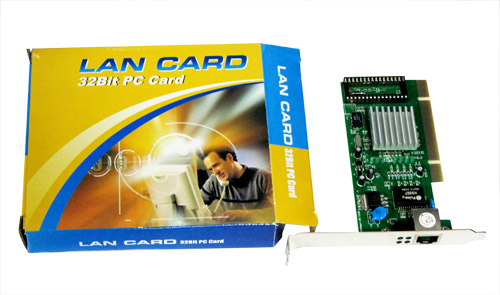

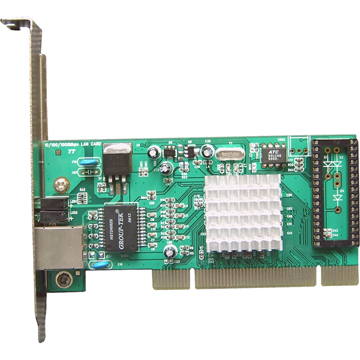

PCI lan card: 1000m lan card
Product Description
Chipset: Reltek 8169
Supports 1000Mb/s N-way auto-negotiation operation
Compliant with PCI revision 2. 2
Supports PCI clock 16. 75MHz-40MHz
Supports ACPI, PCI power management
Compliant with PC99 standard
Supports wake-on-LAN function and remote wake-up (Magic packet, LinkChg and Microsoft wake-up frame)
Supports auxiliary power-on internal reset, to be ready for remote wake-up when main power still remains off
Contains 2 large (2KB) independent receive-and-transmit FIFOs
Supports digital and analog loop back capability on both ports
Supports full duplex flow control (IEEE 802. 3x)
Supports diagnostic LED pins with programmable outputs
Setup/diagnostic program for DOS/Windows
NDIS2 (DOS, OS/2, Lantastic, WFW3. 1)
NDIS3, NDIS4, NDIS5 for Win95, 98, Me, 2000, NT 3. 51, 4. 0, WFW3. 11
Packet driver for UNIX client
SCO UNIX, FreeBSD, UnixWare 7. 0 and Linux driver
RPL boot ROM for Novell Netware, Microsoft NT
Software support:
On-board EEPROM (93C46) programming tool
Setup/diagnostic program for DOS/Windows
driver for UNIX
